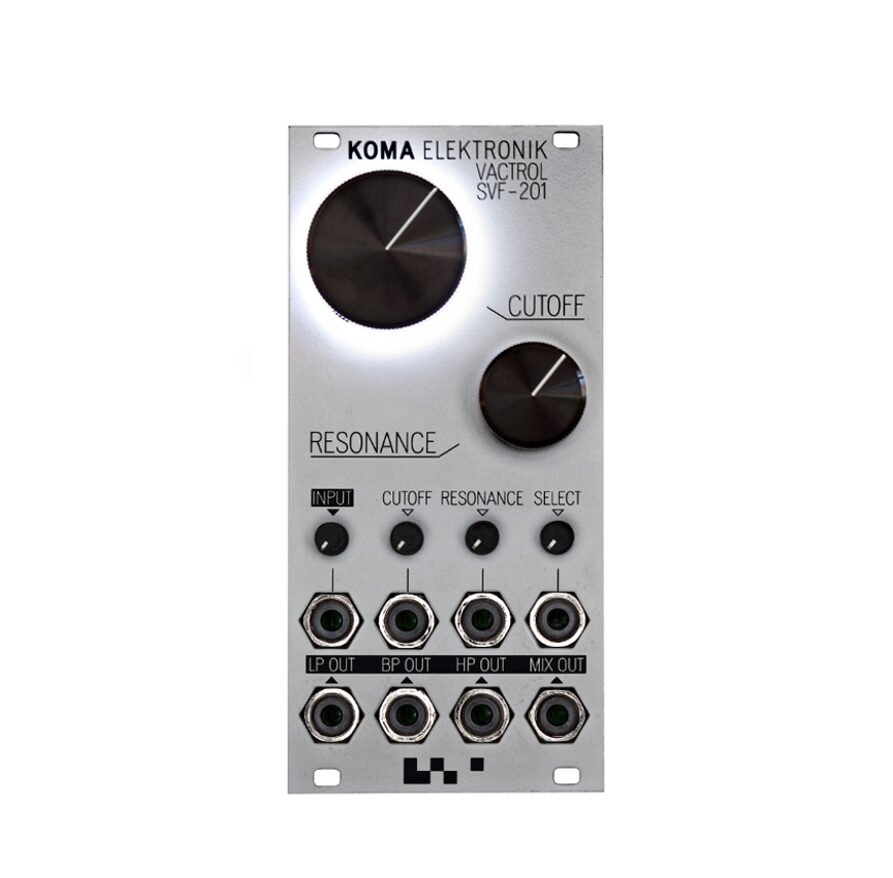

SVF-201 Analog State Variable Filter

SVF201 – Analog State Variable Filter

239,50

Place Backorder

The KOMA Elektronik SVF-201 is a state variable filter for the Eurorack modular synthesizer system. Its filter circuit is built up with optical parts (vactrols) therefor delivering excellent studio audio quality and an unique warm analogue sound. The module uses parallel mounted PCBs so it can be used in skiffs as well as in big cases, the total depth is less than 4 cm. The SVF-201 comprises 4 audio outputs that can be used independent of each other at the same time, a High Pass, Band Pass, Low Pass and the unique first ever CV’able Mix Out. The Mix Out out let’s you sweep continuously through the other three outputs by means of a knob and control voltage.

The SVF-201 offers an amazing sounding filter together with a well designed user friendly surface; a professional surrounding inviting you to play it real good.

The SVF-201 is currently out of stock, but will be restocked in limited quantity by early February 2017.

Available on backorder

SKU: 11000 Category:

Additional Information

Inputs

Audio, Cutoff (CV), Resonance (CV), Select (CV)

Outputs

Lo Pass, Band Pass, Hi Pass, Select

Controls

Cutoff, Resonance, Select

Casing

2mm Aluminum front panel, powder coated white with silkscreen printing.

Dimensions

12 HP / 40mm depth

Shipping Weight

250 gram / 0.55 lbs

Power Requirements

80 mA @ +12V. 11 mA @ -12V.

Video Demos









Manual

You can download the PDF manual (Version 1.1) here.
And in white here.
