BD101 – Analog Gate / Delay (Discontinued)

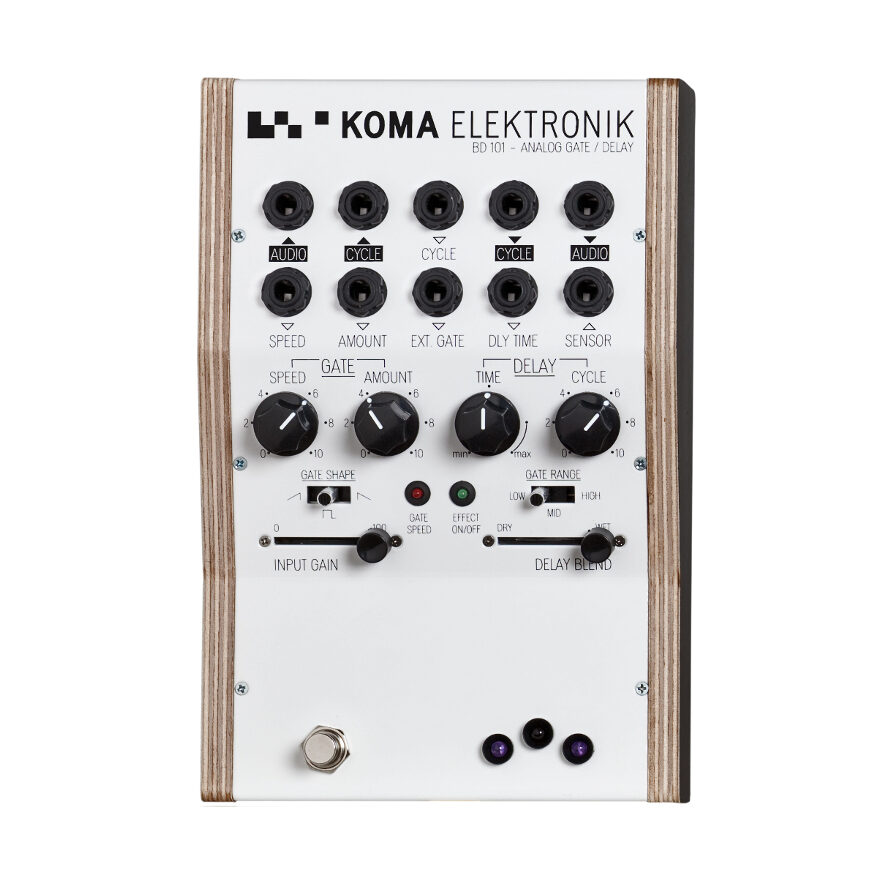

The KOMA Elektronik BD101 Analog Gate / Delay is an innovative voltage controlled analog delay in combination with a fully adjustable wide frequency range gate. The BD101 is capable of providing bit crushing effects, resonant frequencies, fast shifts between heavy delayed and cranked up sounds and super short pulses, with whatever instrument you want to plug into it. With the on board infrared expression controller the user is able to override / control all the front panel controls by moving their hands or feet over it, which makes the pedal a versatile and powerful tool for use live or in the studio.

In February 2018 we discontinued the BD101.

Shipping Worldwide!

  • 2 Years Warranty!
  • Secure Payments
Guaranteed Safe Checkout
Inputs

Cycle (CV), Cycle (Audio), Audio, Speed (CV), Amount (CV), Ext. Gate (CV), Delay Time (CV)

Controls

Input Gain, Gate Speed & Amount, Gate Shape, Gate Range, Delay Time & Cycle, Delay Blend

Rear Panel CV Controls

Sensor Out, Speed In, Delay Time In, Amount In, Cycle In

Casing

Powder coated aluminium casing, silk screened text and wooden side panels.

Dimensions

23 cm x 15 cm x 5 cm (L x W x H) / 9" x 6" x 2" (L x W x H)

Net Weight

850 gr / 1.8 lb

Shipping Weight

1 kg. / 3.0 lb including power adapter and instruction manual

Power Requirements

9V DC power adapter, 500mA min, center polarity negative (only use the KOMA adapter shipped with the pedal)

Manual

You can download the manual for the BD101 here.
