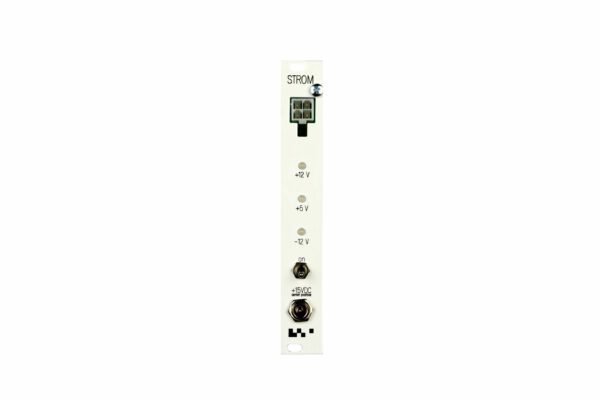

KOMA Strom Module

99,00

STROM is a strong, reliable and slick power solution for your modular system. The STROM power modules were made with care for your system: it includes short-circuit protection and a replaceable fuse. STROM offers ultra low ripple on each rail, also under full load.

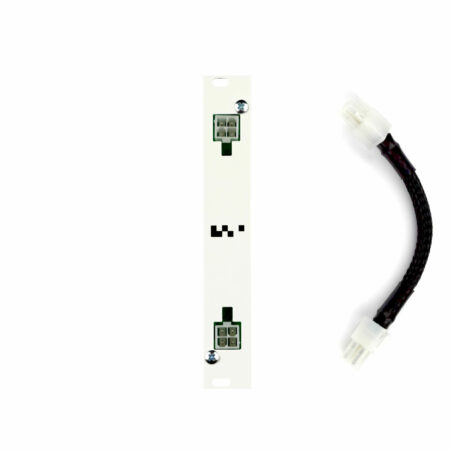

One active module can power multiple skiffs thanks to the STROM passive module distributing the power, which can be linked to an active, or another passive module with two link-connectors in the front of the system.



Category:

Technical Specifications

  • Input: 15 V DC, 4.6 A (center positive)
  • Output: 1,5A @ +12V / 1,5A @ +5V / 1,0 A @ -12V

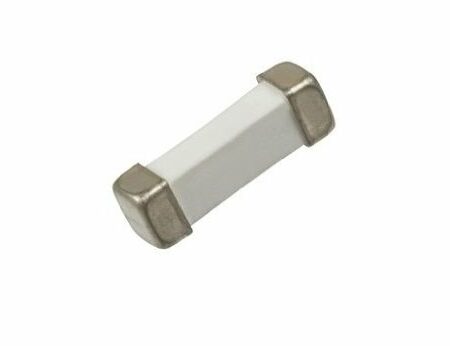

Replacable Fuse

Short-Circuit Protection for Each Rail (+12V, +5V and -12V)

Very Low Ripple on Each Rail, Also Under Full Load

Connectors and Controls:

  • Main DC-Input (15 VDC)
  • On/Off Switch
  • Front Panel Link-Connector to a passive module
  • 2 Standard Eurorack Power Connectors (connect modules or a flying busboard)

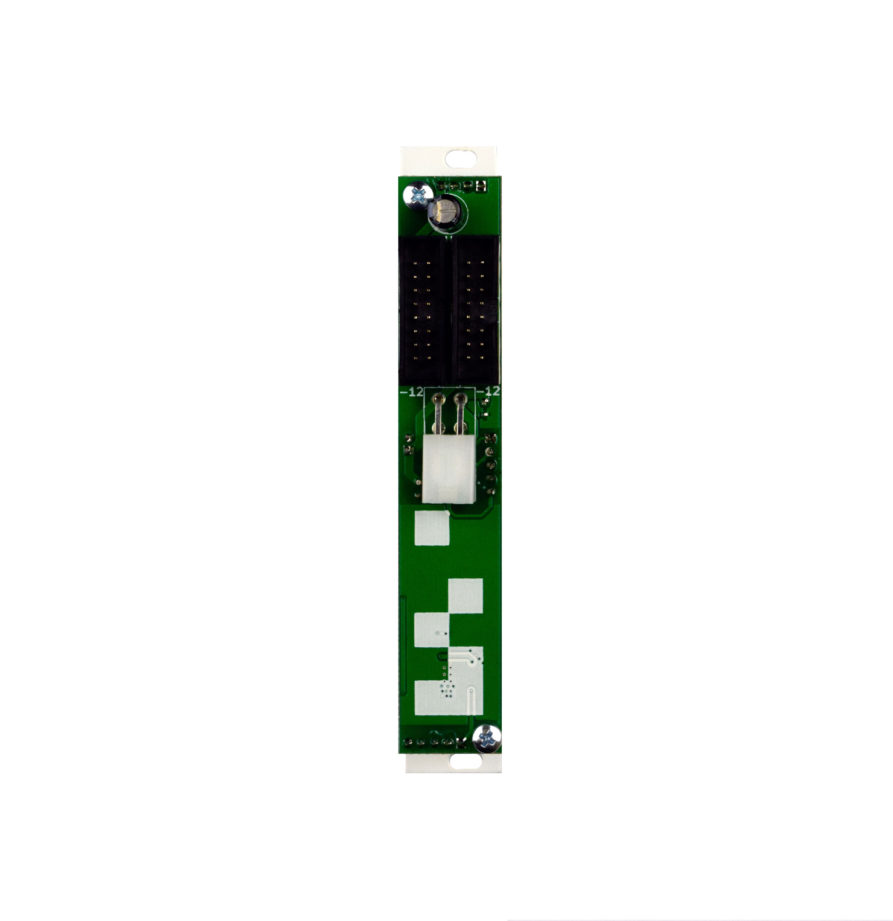

  • Back Panel Link Connector To Solid Busboards

Read the Manual for the KOMA Elektronik STROM Power Solution.
