All you wanna know...

This device is a powerful CV-controlled effects unit for your electronic music setup and pairs extremely well with the KOMA Field Kit.

• Looper
• Frequency Shifter
• Sample Rate Reducer / Bit Crusher
• Digital Delay
• Analogue Spring Reverb
• 4 Channel VCA Mixer
• 4 Step Mini Sequencer
• Envelope Generator

All of this, combined with the new 4 Channel CV Interface which allows you to route four CV signals throughout the device, means an incredible control over sound and timbre and a great addition to your mobile performance rig.

The Field Kit FX is more fun with the right tools! You could add the FX Expansion Pack, which offers a spring reverb tank and other goodies!

Let’s get more detailed…

The Field Kit FX is built up from 7 separate functional blocks all focused on mangling and changing incoming audio and CV signals. They are designed to operate together as a coherent addition to our Field Kit Electroacoustic Workstation or alternatively together with other pieces of music electronics with the ability to use control voltage signals.

The Field Kit FX is a mad machine packed with a bunch of cool effects and features! Let us run your through its functions, first there is the:

4 Channel VCA Mixer

The 4 Channel VCA Mixer is where all the signals of the Field Kit FX come together, providing a fully functional mixer with individual Volume and Tone control over each channel. We added CV control over the VCA so you can use your modular synthesizer, the CV outputs of your original Field Kit, or any other device to tweak the audio levels of the signals coming from the effects or feeding into them.

The level of the Master Output can be set with the Master Volume rotary control, use the CV Select buttons to route the CV signals of the CV Interface to the separate channels. We like to push the limits with sound. Just like the mixer in the Field Kit, there is plenty of Gain to play with and the Tone control is a Low/Hi Pass filter that can drastically change the sound.

CV Controlled Spring Reverb

One of the classic effects is the Spring Reverb, which – especially taken from it’s enclosure – is the experimentalists’ dream. You can touch it, hit it and use the physical properties to create spooky and unearthly sounds. We got so many requests of users of the Field Kit to add one, so we did.

The Spring Reverb section in the Field Kit FX is Otto’s take on classic Spring Reverb circuitry and it rocks! He added a switchable Resonant Low Pass and Bandpass Filter in the audio path and a dedicated Cutoff rotary control to shape the input signal. In addition to that, we added variable Gain In, so you have maximum control over what you send into the effect. The Spring Reverb comes with CV control over Cutoff Frequency and Feedback.

Please note: the Field Kit FX does not have a build-in spring reverb tank. You can use a whole scala of reverb tanks by connecting them to the Tank In and Out RCA connectors! Try playing around with different sizes. We offer a great high quality reverb tank in the Field Kit FX Pack (see below)!

CV Controlled Frequency Shifter

A super useful and interesting effect – and very popular here in the KOMA workspace – is the CV Controlled Frequency Shifter. A frequency shifter moves all audio frequencies by a given frequency amount, rather than a musical interval, like a pitch shifter. Technically, it modulates the audio onto a high frequency carrier wave, while filtering off one sideband and demodulated using a slightly different frequency.

This gives super cool results. Small shifts in frequency can give you deep phasing effects. Larger shifts will allow you to enter a highly interesting sonic world, where for instance frequency differences which are related to a note give strange harmonic structures, which when the note changes give the weirdest sort of musical dissonance – which was a much used trick of KOMA favourite Karlheinz Stockhausen.

For instance, when you input a piano sound and shift the frequency up you will end up with a piano which is very metallic sounding. When you shift the frequency down, the sound will be more like a membrane. You can change the sound of the Frequency Shifter with the Amount control, which allows you to set the frequency shift amount, and the Sideband control where you can tweak the harmonic structure. Of course both controls can be controlled via the CV Interface too.

CV Controlled Digital Delay

The Digital Delay is another creation of Otto, where he tweaked known configurations of the PT2399 Delay circuit to a Digital Delay with KOMA character! Create crunchy delay effects, add additional effects in the Feedback loop and enter the endless echo space!

Use the Time and Feedback rotary controls to shape your sound, both can also be controlled via control voltage! We added a Gain In rotary control to manually feed the signal into the delay path, which is helpful, since this effect can easily go into overdrive!

Use the special stereo to mono in/out feedback cable (or insert cable) in our Field Kit FX Pack (see below) to take the audio signal out of the feedback path and plug it into other effects to make your delay sounds even more unique.

CV Controlled Looper

Super useful for experimentalists and musicians alike is the Field Kit FX’s Looper. The looper can sample sound material up to 3 seconds in length and you can overdub this loop without limitation.

Use the SRR rotary control to reduce the sampling rate and use the Crush rotary control to bit-crush the signal. Things get even more interesting (and way more fun!) when you modulate both controls with control voltages. This way you can create complex loops that keep changing their timbre and therefore create interesting sonic soundscapes and awesome rhythms.

CV Controlled Sample Rate Reducer / Bit-crusher

Also when you are not looping signals, you can use the looper section as a Bitcrusher and Sample Rate Reducer! Make a sinewave into a squarewave to scare that cat off your synthesizer.

Roll-O-Decks – CV Generator

The Roll-O-Decks is a multi purpose CV generator that you can use to control the CV Inputs of your Field Kit FX, original Field Kit or any type of (modular) synthesizer. It consists out of two different functions:

The 4 Step Mini Sequencer

A sequencer is always a handy source to have around when playing with effects. Use the different voltages that come out of the Mini Sequencer to automate different effect features, like the feedback of the Delay or the Cutoff frequency of the Spring Reverb’s filter.

Route cv signals from one of the CV Interface’s inputs to the Threshold rotary control of the Roll-O-Dex and use incoming signals to trigger the different steps. Once no voltage is applied to the input, the Threshold control will act like a clock source, advancing the Mini Sequencer with every pulse.

The Envelope Generator

Just like the Mini Sequencer, the Envelope Generator creates handy cv signals to use with effects. It uses the four rotary controls to set the Attack, Decay, Sustain and Release phases of the envelope. If there is no CV routed to the Threshold pot, it will fire off repeatedly with the speed set by the Threshold control. If you route a CV signal to the Threshold, it will compare this incoming signal to the threshold and only fire if the CV signal goes above it.

CV Interface

The CV Interface consists out of 4 CV inputs that can be routed to 11 destinations on the Field Kit FX. These 11 destinations are the most important features that can be controlled on the machine.

The four CV inputs are color-coded (Seapunk Blue, Chrisi Pink, Deep Dan and OG Orange). The eleven destinations have an LED and a little push button above them. When you press the button, the color of the LED changes and the CV with the same color is now routed to that control.

Want to route your favourite LFO to the Delay Time? Simply plug it into one of the four inputs and press the small pushbutton above the Delay Time until the colors match. Every CV can be routed to every destination and every CV can also be routed to multiple places as many times as you wish.

Hear the Field Kit FX in action!

Field Kit FX Pack

Like with the original Field Kit, it’s all about the things you connect to the Field Kit FX! To get you started we offer an Expansion Pack with a bunch of different sources that you can use and connect to create your own signature sounds.

The Field Kit FX Pack contains:

• 1 x Spring Reverb Tank

• 1 x Delay Feedback Path Cable

• 1 x Big Contact Microphone

• 1 x Small Contact Microphone

• 1 x KOMA Elektronik Attenuator Cable

• 3 x 3,5mm Patch Cables

Always handy to have around to patch up different parts of your Field Kit FX!

In the book and manual Another 50 Ways To Use The Field Kit FX that will be shipped with every Field Kit FX we show you how you can make a bunch of cool patches together with your Field Kit FX and original Field Kit, you know: to experiment away! You can get the FX Pack as a separate reward or get it in a bundle with the Field Kit.

MRSP Pricing Field Kit FX Pack: 64,00 EUR (incl. 19% VAT)

Another 50 Ways To Use The Field Kit FX

With every Field Kit FX we ship a little booklet called “Another 50 Ways To Use The Field Kit FX,” which, besides being the official user manual, is 100ish page book with examples of 50 different setups with the Field Kit FX to spark your imagination to experiment with the Field Kit and Field Kit FX on how for instance use audio as modulation source, cool ways to use frequency shifting, use overdubbed looped layers, how to program and load your own effects for the DSP engine and so much more!

Eurorack Ready!

You can easily interface the Field Kit FX with a Eurorack modular system. At the backside of the PCB you will find a power connector you can use to power the unit from your system. The total panel width will be 36HP.

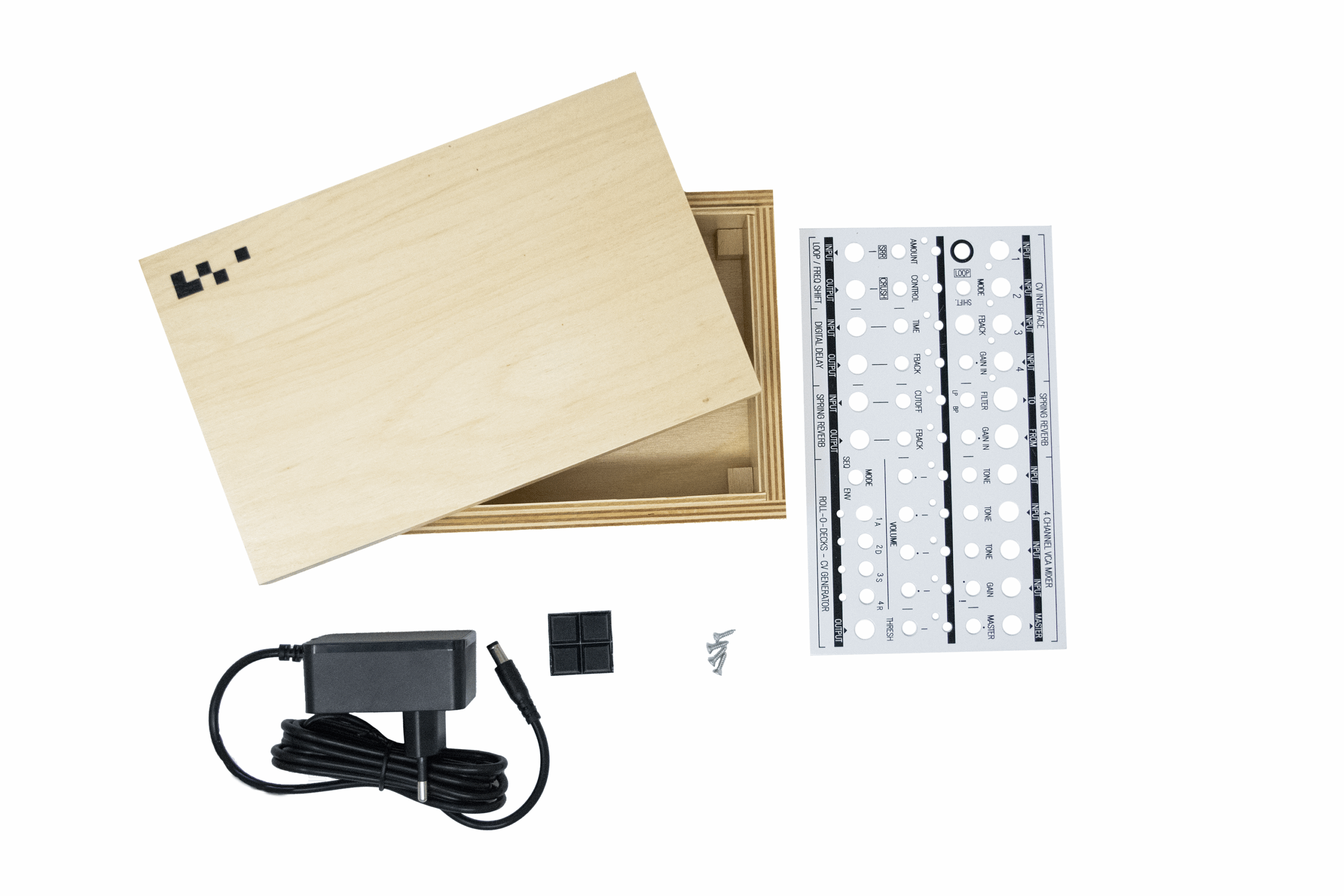

The Field Kit FX will be available both as an assembled unit in a wooden enclosure or as a Eurorack module. When you choose the boxed version and would like to have the opportunity to rack mount your FX, you can unscrew the Field Kit FX out of its box, take off the front panel and mount the Eurorack panel easily. Only the panel will be on sale in our web shop and through selected resellers after the campaign, so when you decide on the boxed unit now, you can always switch to a eurorack unit yourself later. We will not be selling the boxes separately after the campaign.

MRSP Pricing Eurorack Module: 249,00 EUR (incl. 19% VAT)

MRSP Pricing Eurorack Panel: 29,00 EUR (incl. 19% VAT)

Open Source Software

Unfortunately we cannot ship the FieldKit FX as a DIY unit due to it’s complexity and bring-up process. Therefore we want to give everyone access to the source code of the DSP engine and user interface itself. The digitally controlled parts include the looper, the frequency shifter, sample rate reduction, bit crushing effect, phaser, the CV interface and the Roll-O-Decks.

The code is commented, so even if you are not an experienced programmer you can tweak certain settings and see the results! We encourage programmers to play around with the code and share it with other users.
