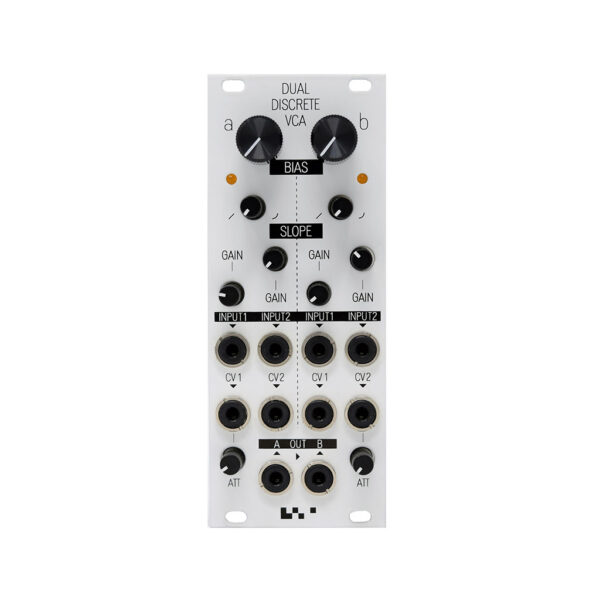

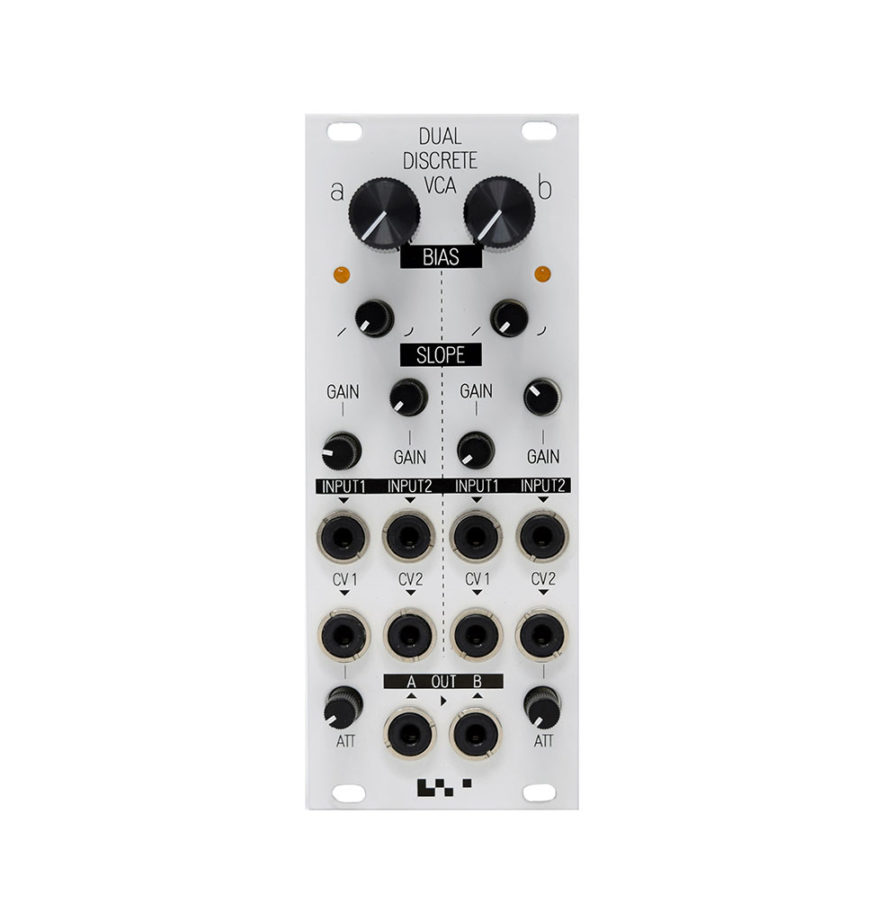

Dual Discrete VCA with 4 audio inputs. The inputs offer an analog soft-clipping stage before they go into the VCA. The VCA stages themselves are built up with discrete components (transistors) and have very low CV and audio bleed.
The slope with which the VCA reacts to incoming CV signals can be changed from linear to logarithmic which essentially enables you to go between hard and soft in terms of CV reaction. It is also an interesting feature to explore when using the VCA for amplitude modulation of audio signals.
CV1 on the first VCA is internally connected to +5V, so if no signal is connected to CV1 input, the CV attenuator (ATT) can be used as a loudness control. CV2 is directed to the VCA core directly without an attenuator. The same is true for CV2/CV1 on the second VCA.
Can be used as a dual 2:1 mixer or as a single 4:1 mixer as well. This is nice because of the soft-clipping input stage. Output A is mixed together with Output B if no cable is plugged into output A.
The module is 10HP.
