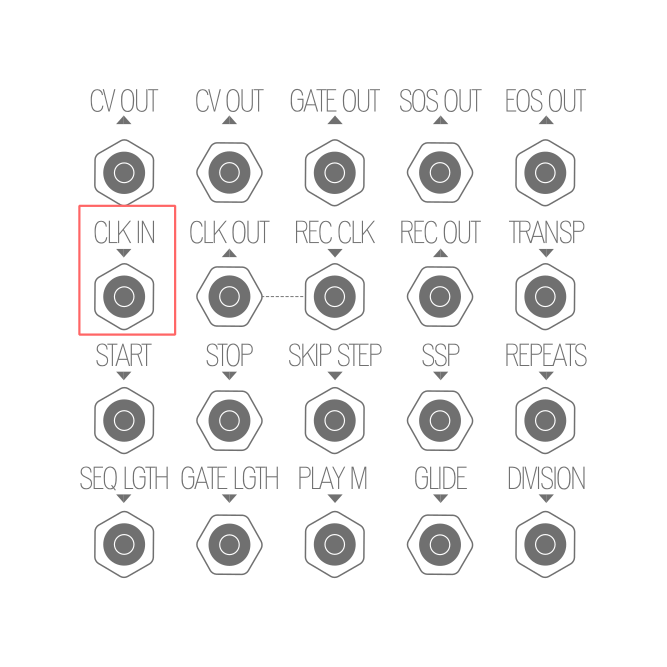

Clock In

With the Clock In you can set the speed of the individual sequencers via an incoming clock signal. Overrides the Speed rotary control per sequencer. You can use one clock source for multiple sequencers by daisy chaining the Clock Out to the other sequencer’s Clock In. When using the MIDI In (and subsequently the MIDI Clock Out) as your …

Clock In Read More »

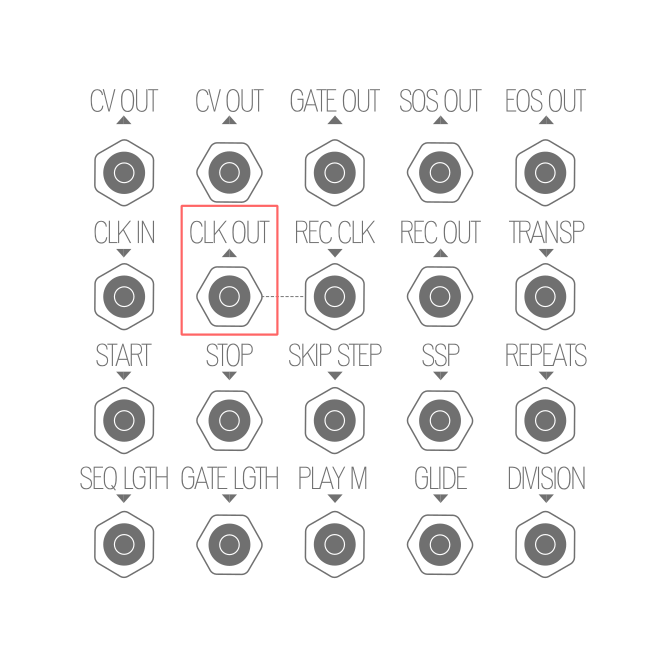

Clock Out

The Clock Out jack outputs the clock per sequencer as set by Speed or incoming clock. You can use one clock source for multiple sequencers by daisy chaining the Clock Out to the other Sequencer’s Clock In. When using the MIDI In (and subsequently the MIDI Clock Out) as your master clock source, you need to select the …

Clock Out Read More »


CV Out

The CV Out is the output of the sequencers. It outputs 2V, 5V or 9V as set with the Output Range slide switches. The output can be quantized with the Quantizers, effectively giving you a range up to 9 Octaves. The output is also affected by the Transpose In.


CV Recorder Bank Up/Down

Send a trigger (+5V) at these inputs to move the selected bank one position up or down. This only affects banks 1-3. You can, for example, use the SOS Out (Start of Sequence Output) and EOS OUT (End of Sequence Output).

CV Recorder Clock In

The incoming clock signal to the CV Recorder Clock In sets the speed of the record and playback of the central CV Recorder. One positive pulse steps the CV Recorder one step.

CV Recorder CV In

The CV Recorder CV Input receives control voltage to be recorded to the selected CV Recorder bank (1, 2 or 3) via the Set control.

CV Recorder CV Out

The CV Recorder CV Out outputs the corresponding CV passing through the CV Recorder CV In or the output of what is recorded in CV Recorder Banks 1, 2 or 3.


CV Recorder Play

You can start the CV Recorder in two ways: By pressing the Play Button in the CV Recorder section. Use the Set rotary encoder to select the bank to play. By sending a positive pulse (a +5V trigger signal) to the CV Recorder Start Input, the selected sequence starts playback. Please note: The CV Recorder always …

CV Recorder Play Read More »


CV Recorder Record

When the Record button is engaged, the CV Recorder will start recording the incoming CV signal at its CV Input to the selected CV Bank chosen by the Set rotary encoder whenever the first trigger is received at the CV Recorder Clock In. When the Record button is disengaged, recording of the incoming CV signal will …

CV Recorder Record Read More »


CV Recorder Set

The Set rotary control selects which CV Recorder Bank is being played at the main CV Recorder CV Out and being recorded to at the main CV Recorder CV In. Only banks 1, 2 and 3 can be played out of the central CV Recorder CV Output. But, all banks (including A, B, C and D) must …

CV Recorder Set Read More »

CV Recorder Start

When this input receives a positive pulse, the CV Recorder begins playback on the selected bank.

CV/Gate Updates

To update your Komplex Sequencer to operate with the latest firmware, download the ZIP archive file from the Komplex Sequencer Product Page. Komplex Sequencer Boot loader Manual for Sequencers A – D Preparations: Download the latest firmware *.zip file from the Komplex Sequencer Product Page; Extract the *.wav files into a folder; Open an audio program …

CV/Gate Updates Read More »
