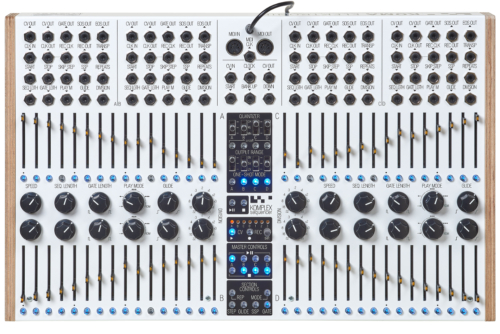

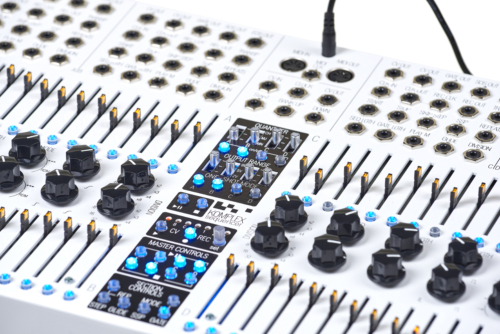

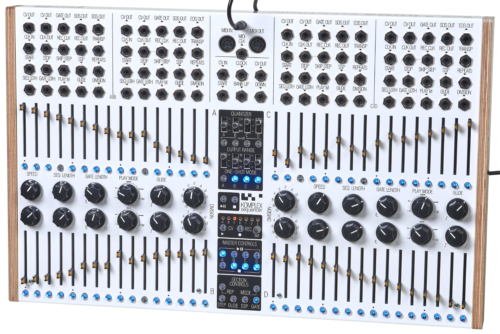

    • Komplex Sequencer

    Powerful step sequencer built around four well-equipped full-featured 16-step sequencers communicating via both MIDI and CV/Gate. There are no screens or submenus.

    All features have their own dedicated controls and have their own dedicated in- and outputs on the large 87-point patch bay. Every aspect of this sequencer is CV-able. Lastly a seven bank CV Recorder is on board and can output up to 5 banks at once!

    The Komplex Sequencer opens up a whole new world of creative possibilities and starts where other sequencers have stopped!

    1.999,00 €

    Availability: Out of stock

    Shipping Worldwide!

    • 2 Years Warranty!
    • Secure Payments
    Guaranteed Safe Checkout

    Our step sequencer lets you construct complex musical patterns, both via MIDI and CV/Gate. Built around four full-featured 16-step sequencers in a compact and light enclosure, the Komplex Sequencer is a powerful tool both live and in the studio.

    The Komplex Sequencer stays true to KOMA’s philosophy to interact with your gear like you would with an instrument; all features have their own dedicated controls, inputs and outputs on a large 87-point front-panel patch bay inviting you to instantly engage with the machine.

    By patching both internal and external CV sources through the patch bay of the Komplex, you can control any parameter of the sequencer immediately and “sequence the sequence.” Controls include Speed, Sequence Length, Gate Length, Play Mode, Glide, Division, Transpose, Repeat, Sequence Start Point and Skip. Additionally, the sequencer can vary output range and also has a quantizer on board operable in different scales.

    And not only is the sequencer compatible with almost any synthesizer with CV/Gate, MIDI note, velocity and CC information can also transmitted by any of the four sequencers. Lastly a seven bank CV Recorder is on board and can output up to 5 banks at once! The Komplex Sequencer opens up a whole new world of creative possibilities and starts where other sequencers have stopped.

    More Komplex videos on Youtube

    CV Inputs

    Clock, Rec Clock, Transpose, Start, Stop, Skip Step, Sequence Start Point, Repeats, Seq Length, Gate Length, Play Mode, Glide, Division, CV Recorder (CV In, Clock, Start, Bank Up/Down)
    CV Outputs

    CV Out, Gate Out, Start Of Sequence, End Of Sequence, Clock, CV Recorder CV Out (A, B, C, D and CV)
    Sequencer Controls

    64 Sliders and Step Select Buttons, Speed, Sequence Length, Gate Length, Play Mode, Glide, Division, Quantizer and Scale, Output Range, One-Shot Mode, Play/Pause and Stop, Global Play/Pause and Global Stop
    Section Controls

    Repeat Set, Mode Menu, Skip Step, Glide, Sequence Start Point, Gate
    MIDI

    MIDI In, MIDI Out, MIDI Clock Out (1 trigger per quarter note)
    CV Recorder

    Banks A, B, C and D available at corresponding sequencer patch bay outputs. All 7 banks selectable at CV Recorder CV Out by the Select control or Bank Up/Down inputs. CV is recorded and clocked through the CV Recorder CV and Clock inputs or Sequencer Rec Clock inputs.
    Extra Features

    Mode Menu (Skip Step Mode, Repeat Mode, Unipolar/Bipolar CV Output, MIDI Message, MIDI Channel, MIDI CC) and Firmware Updates
    Casing:

    Powder coated aluminum casing, silk screened printing and wooden side panels.
    Dimensions

    46.2 cm x 29 cm x 4 cm (L x W x H)
    18.2" x 11.4" x 1.6" (L x W x H)
    Net Weight

    3.2 kg / 8.8 lb
    Shipping Weight:

    4.5 kg. / 9.9 lbs including power adapter and instruction manual.
    Power Requirements:

    9VDC power adapter. Only use the KOMA adapter shipped with the unit.
    Accessories

    Included: dust cover, manual and power supply unit.
    Rackmount kit available separately

    Manuals

    Please make sure you use the proper PSU for your Komplex Sequencer! Sequencers with serialnumbers 001 – 200 use 12V AC PSUs, serialnumbers 201 and upwards use 9V DC PSUs! Be aware!

    Manuals:

    New Komplex Manual (Download)

    Older versions:

    Download the Mode-Menu Manual annotations for firmware < V2.0 here (v1.3).

    Firmware

    Last Firmware available is backwards compatible with all versions of the Komplex Sequencer.

    To update your Komplex Sequencer to the latest firmware, download the ZIP archive file below. Inside the ZIP file there is a PDF file explaining the procedure.

    Komplex Sequencer Firmware V3.1

    Only Sequencers A – D and MIDI need to be updated. CV-Recorder is unaffected by this update and does not need to be updated. Click to download: Komplex Sequencer Firmware 3.1

    CHANGELOG V3.1:

    – Fix MIDI transpose bug
    – Fix MIDI CC display bug

    CHANGELOG V3.0:
    – MIDI notes can be transposed now + MIDI implemention got more robust
    – Division ADC ranges now internally calibrated on a per sequencer basis
    – Add user assignable color scheme
    – Add startup sequence
    – Add factory reset
    – Add new Step Skip mode (Pause Mode)
    – Fixed UI bug that lead to wrong display of settings under certain conditions
    – Sequence Length, Gate Length, Play Mode, Glide, Repeats and Sequence Start Point are now modifiable by CV of the same step (or other synchronized steps)
    – Tied gates can now be turned off in Mode Menu
    – Remove clock speeding at startup
    – Remove Sequence Length UI popup at startup
    – Remove hang-ups while saving the current configuration of the menu to EEPROM

    Komplex Sequencer Firmware V2.3

    CHANGELOG :

    – increased resolution of AD-conversion for DIVISIONS
    – improved digital filtering of AD-conversions

    For more information on how to update your KOMPLEX Sequencer, please click here.

    Download Komplex Sequencer Firmware 2.3 here: KOMPLEXsequencerFW_version2.3.zip

    Komplex Sequencer Firmware V2.1

    CHANGELOG :

    – Tied gates are turned off when sequencer is stopped
    – Fixed a bug regarding hangs in random playmode when a lot of steps are turned off
    – Chaining of sequencers with the eos-trigger works now without any glitches
    – Added digital filter to prevent sequencer D from jumping

    — Note —
    – Only sequencers A – D need to be updated (not MIDI). Other files just for reference and updates from versions < Firmware 2.1

    For more information on how to update your KOMPLEX Sequencer, please click here or refer to the PDF inside the zip file linked above.

    Komplex Sequencer Firmware V2.0
    CHANGELOG:

    – Overall code rewrite enhancing general playability and reliability
    – Selectable STOP behaviour switches between Stop and Reset
    – Swing
    – Reset function for Steps, Gates, Glides and Repeats
    – 100% Gate Length (tied gates)
    – Faster response to external clocks (100μs from clock to gate typically)

    Download Komplex Sequencer Firmware 2.0 here: KomplexSequencerV2.0Firmware.zip
